Mobile Solutions: Wear Parts for Buckets, Blades and Dozers

October 30, 2026

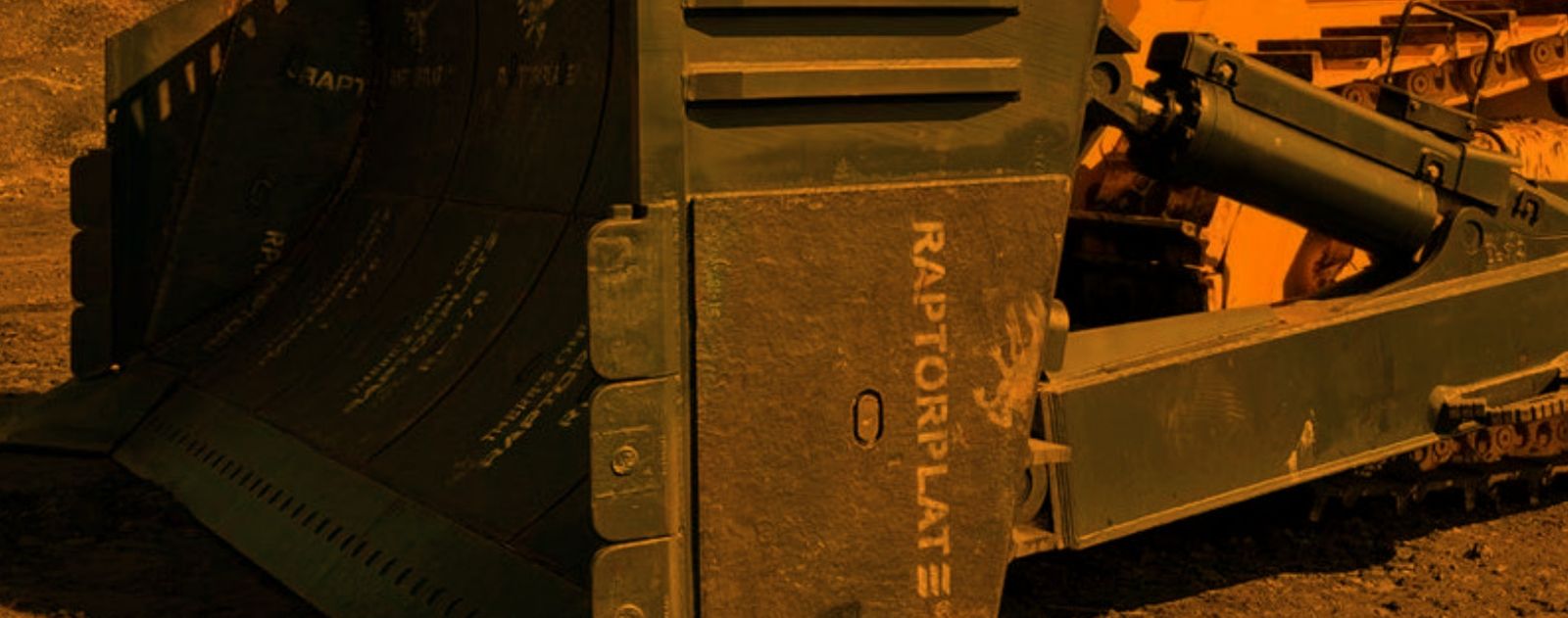

Dozer blade with RaptorPlate wear liner and side plate working on site

Mobile equipment wears out in more places than the cutting edge. Every surface that touches rock has its own wear part, and Raptor makes one for each of them. This is the full Raptor Mobile Solutions catalog in one place, with the sizes and weights you need to start a quote. Shroud selection has its own deep dive: lip and heel shrouds.

Send us the part number or the machine and we will quote it. Request a quote

chocky bar sizes

Custom

heel plates made to fit

RaptorPlate® patch sizes

Rambo bar sizes

Lip shrouds, heel shrouds and lip savers

The cutting edge and the heel take the hardest hits on any bucket. Full sizing guidance lives on our lip and heel shroud page. Here are the brochure sizes.

Heel shroud weight

Five sizes from 8 in to 13.75 in long

1.63 in

30 lb

2.50 in

56 lb

3.00 in

90 lb

2.80 in

105 lb

4.00 in

166 lb

Thickness	Width	Length	Weight
1.63 in / 42 mm	8.00 in / 203 mm	8.00 in / 203 mm	30 lb
2.50 in / 64 mm	7.55 in / 190 mm	10.16 in / 258 mm	56 lb
3.00 in / 75 mm	9.84 in / 250 mm	9.84 in / 250 mm	90 lb
2.80 in / 72 mm	10.04 in / 256 mm	12.25 in / 312 mm	105 lb
4.00 in / 102 mm	9.62 in / 244 mm	13.75 in / 350 mm	166 lb

Base edge	Angle	Width	Weight
2.35 in / 60 mm	22.5°	24.00 in / 610 mm	140 lb
2.75 in / 70 mm	22.5°	24.00 in / 610 mm	182 lb
3.12 in / 80 mm	22.5°	24.00 in / 610 mm	212 lb
3.54 in / 90 mm	35.0°	24.00 in / 610 mm	187 lb
3.93 in / 100 mm	22.5°	24.00 in / 610 mm	322 lb
2.00 in / 50 mm	22.5°	2.00 in / 50 mm	13.42 lb
2.00 in / 50 mm	22.5°	4.00 in / 100 mm	26.93 lb
2.50 in / 65 mm	22.5°	4.00 in / 100 mm	32.84 lb

Lip saver	A	B	C	Angle	Weight
5.90 in style	5.90 in	1.80 in	2.95 in	23°	14.10 lb
6.00 in style	6.00 in	2.20 in	4.93 in	23°	28.70 lb
9.00 in style	9.00 in	3.70 in	5.60 in	35°	58.20 lb

corner bar runs 36 in (915 mm) and weighs 77.80 lb. A full lip assembly pairs lip savers with chocky bars and beeps.

Defender® (LWP)

Defender® parts are bi-metallic and laminated wear parts for the surfaces on a bucket that see constant sliding abrasion. Each style comes in several sizes so you can match the pattern to the bucket.

Chocky bar weight by width

All bars are 9.50 in long and 1.00 in high

1.00 in

2.41 lb

1.50 in

3.55 lb

2.00 in

4.81 lb

2.50 in

6.05 lb

3.50 in

8.54 lb

4.00 in

9.8 lb

5.00 in

12.28 lb

Width	Weight
1.00 in / 25 mm	2.41 lb
1.50 in / 40 mm	3.55 lb
2.00 in / 50 mm	4.81 lb
2.50 in / 65 mm	6.05 lb
3.50 in / 90 mm	8.54 lb
4.00 in / 100 mm	9.80 lb
5.00 in / 130 mm	12.28 lb

Diameter	Height	Weight
2.50 in / 65 mm	0.88 in / 22 mm	1.07 lb
3.50 in / 90 mm	1.25 in / 30 mm	2.70 lb
4.50 in / 115 mm	1.32 in / 33 mm	5.11 lb
6.00 in / 150 mm	1.38 in / 35 mm	9.55 lb

Width	Length	Height	Weight
4.00 in / 112 mm	6.00 in / 153 mm	1.34 in / 34 mm	8.60 lb
4.00 in / 112 mm	8.50 in / 216 mm	1.34 in / 34 mm	11.92 lb
4.00 in / 112 mm	12.00 in / 305 mm	1.34 in / 34 mm	16.03 lb

Diameter	Length	Back width	Weight
1.25 in / 32 mm	9.00 in / 229 mm	0.75 in / 19 mm	3.56 lb
1.50 in / 40 mm	9.00 in / 229 mm	1.22 in / 30 mm	4.76 lb
1.50 in / 40 mm	18.00 in / 457 mm	1.22 in / 30 mm	9.52 lb
2.00 in / 51 mm	12.00 in / 305 mm	1.50 in / 38 mm	11.38 lb
3.00 in / 76 mm	12.00 in / 305 mm	2.50 in / 64 mm	23.16 lb
5.00 in / 127 mm	12.00 in / 305 mm	5.00 in / 127 mm	46.17 lb

Two flat blocks round out the family. The flat block and the bi-metallic block are both 6.00 in by 8.00 in by 1.50 in and weigh 18.14 lb.

Heel plates

Heel plates protect the back of the bucket where it drags. We make weld-on and bolt-on versions, including bolt-on plates for OEM references 109-9215 and 9W6749, and we design and fabricate custom plates to fit your bucket. Send us the bucket model or a photo of the heel and we will size it.

Bolt savers

Bolt savers keep the heads of cutting edge bolts from wearing away so the next change-out does not turn into a torch job. The 1.06 in I.D. style is the mechanical version of the 3.13 in I.D. style.

O.D.	I.D.	Height	Weight
4.63 in / 117.6 mm	3.13 in / 79 mm	1.38 in / 35 mm	2.44 lb
3.00 in / 76.2 mm	1.00 in / 25.4 mm	1.00 in / 25.4 mm	1.61 lb
4.00 in / 102 mm	2.00 in / 51 mm	1.25 in / 32 mm	3.07 lb
4.50 in / 114 mm	1.06 in / 27 mm	1.38 in / 35 mm	2.89 lb

Half Arrows

Half Arrows protect the base edge between teeth. Each piece runs 144.09 in (3,659.8 mm) and can be cut to the length you need. Robotic PTA or ARM+ overlay is available.

T1	T2	W1	W2
1.26 in / 32 mm	0.75 in / 19 mm	7.99 in / 202.95 mm	5.00 in / 127 mm
2.24 in / 56.9 mm	1.14 in / 28.95 mm	10.00 in / 254 mm	5.12 in / 130 mm
2.68 in / 68.07 mm	1.57 in / 39.88 mm	10.00 in / 254 mm	5.12 in / 130 mm

RaptorPlate®

RaptorPlate® is our chromium carbide overlay plate, sold as full sheets, cut strips and ready-to-weld patches. Standard stocked sheets are 60 in by 120 in. The 44.25 in by 105 in sheets are available on request, so contact Raptor or your local distributor.

Stocked sheet weight by thickness

60 in x 120 in (1,524 x 3,048 mm)

3/16 x 3/16

760 lb

1/4 x 1/4

946 lb

5/16 x 5/16

1278 lb

3/8 x 3/8

1525 lb

1/2 x 1/2

1774 lb

Thickness	Size	Weight
3/16 x 3/16	60 x 120 in	760 lb
1/4 x 1/4	60 x 120 in	946 lb
5/16 x 5/16	60 x 120 in	1,278 lb
3/8 x 3/8	60 x 120 in	1,525 lb
1/2 x 1/2	60 x 120 in	1,774 lb
3/16 x 3/16	44.25 x 105 in	490 lb
1/4 x 1/4	44.25 x 105 in	605 lb
5/16 x 3/8	44.25 x 105 in	975 lb
1/2 x 1/2	44.25 x 105 in	1,145 lb

Wear patches come in square or 45 degree corners, with or without a plug weld hole, across four thickness patterns.

Patch pattern	Sizes	Smallest	Largest
4/5 (3/16)	6	3 x 3 in / 0.90 lb	7 x 5 in / 3.40 lb
6/6 (1/4)	21	4 x 2 in / 1.05 lb	12 x 12 in / 18.92 lb
8/8 (5/16)	4	3 x 2 in / 1.07 lb	8 x 6 in / 8.52 lb
10/10 (3/8)	6	4 x 3 in / 2.54 lb	8.75 x 3.75 in / 9.00 lb

Strips are 120 in long in widths from 3 in to 6 in, with 12/12 strips going out to 8 in.

Strip pattern	3 in	4 in	5 in	6 in
4/5 (3/16)	38 lb	51 lb	63 lb	76 lb
6/6 (1/4)	47 lb	63 lb	79 lb	95 lb
8/8 (5/16)	64 lb	85 lb	107 lb	128 lb
10/10 (3/8)	76 lb	102 lb	127 lb	153 lb
12/12 (1/2)	88.5 lb	118 lb	148 lb	177 lb

Dozer steps and grip bars

heavy duty dozer steps are available, and custom steps can be made on request. For traction, grip bars come in five profiles matched to the dozer class.

Type	Length	Height	Dozer
K	4.25 in / 107.95 mm	1.31 in / 33.27 mm	D7, D8
T	4.25 in / 107.95 mm	1.50 in / 38.10 mm	D9, D10
S	4.25 or 6.00 in	2.00 in / 50.80 mm	D11
H	4.00 in / 101.6 mm	2.06 in / 52.32 mm	D8, D9
C	3.00 in / 76.2 mm	1.50 in / 38.10 mm	D9, D10

Tungsten carbide overlay and Rambo bars

Robotic overlay is available at every Raptor CISC (Continuous Improvement Service Center). ARM+ suits high wear with moderate impact, ProARM® suits high wear with high impact, and PTA suits severe wear with moderate impact. It goes on tips, adapters, cutting edges, bolt-on segments and plenty of other wear components.

Rambo bars bring that overlay to flat and round stock you can weld where the wear is worst.

Thickness	Width	Length	Edge
4.00 in	6.50 in	16.00 in	Straight
4.00 in	6.50 in	26.00 in	Straight
3.00 in	5.00 in	16.00 in	Straight
4.00 in	6.50 in	16.00 in	Mitered
4.00 in	6.50 in	26.00 in	Mitered
3.00 in	3.00 in	20.00 in	Mitered, square

Diameter	Length	Overlay
1.50 in	12.00 in	ARM+
2.00 in	24.00 in	ARM+
2.00 in	48.00 in	ARM+
2.00 in	48.00 in	ARM
2.50 in	20.50 in	ARM+
3.00 in	48.00 in	PTA
3.00 in	48.00 in	ARM+
3.00 in	48.00 in	No overlay
4.00 in	36.00 in	PTA
4.00 in	140.00 in	PTA
5.00 in	48.00 in	PTA

Laser scanning and custom work

If the part is not in the tables, we make it. Raptor can laser scan your equipment through any CISC or directly on site, and our engineers use that scan data to design RaptorPlate® or HarderPlate® wear kits that are fabricated in-house for a proper fit. The same data checks pin and bushing alignment. Custom castings are available too.

Questions we hear

What do you need to quote a wear part?

The part number if you have it. If not, the machine model, the bucket or blade, and a photo of the worn area. We can also scan the equipment.

Can sizes be customized?

Yes. Heel plates, dozer steps, Half Arrows and wear kits can all be designed and made to your dimensions.

Where are parts made and supported?

Raptor has been independent and privately owned since 2004, with CISC locations in Edmonton, Barrie, Salt Lake City, Arequipa and Brazil.
