RaptorPlate
RaptorPlate® is a high chrome carbide overlay (CCO) plate engineered for the most abrasive wear environments in mining, power generation, material handling, and construction. Even distribution of primary carbides and low dilution with the backing plate base material means consistent wear life from the first hour to the last.
Even distribution of primary carbides across the full plate surface. Low dilution with the backing steel for maximum overlay integrity. ASTM G-65 wear abrasion test result: 0.162 mass loss. Available in flat plate, rolled pipe, and custom laser-scanned wear kit configurations.

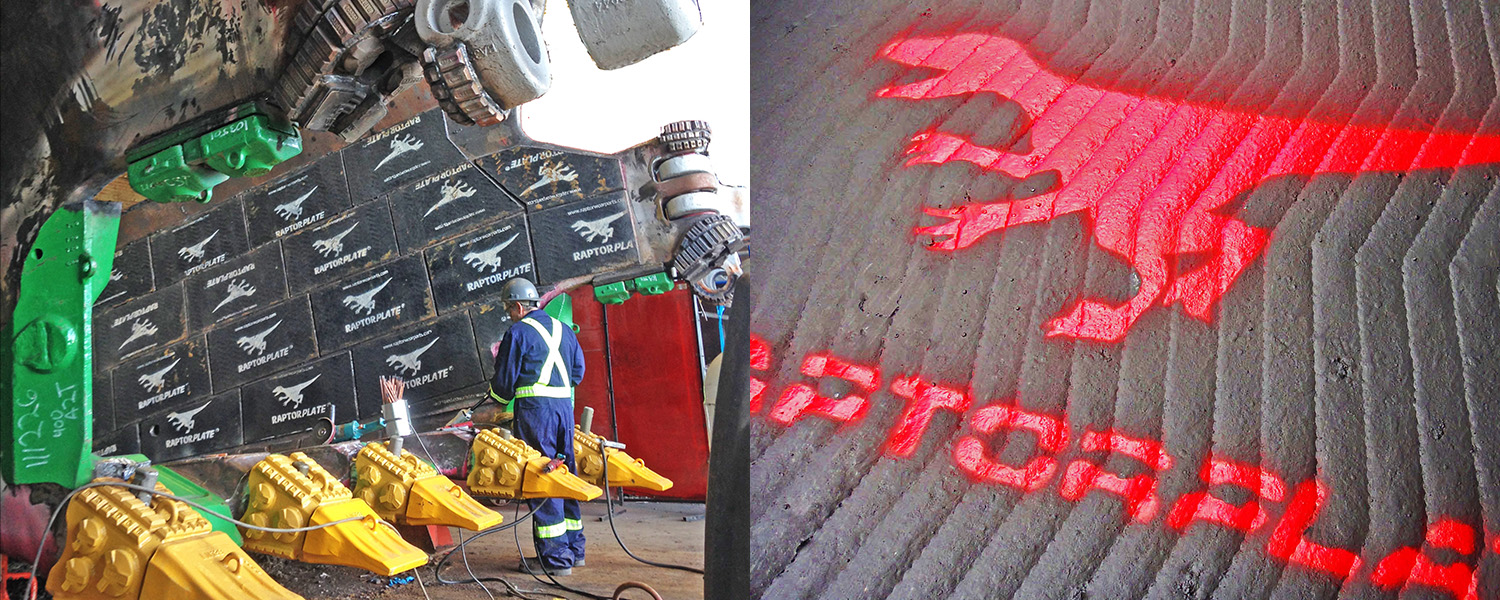

Dozer blades, truck box liners, ERS and HMS dipper liner kits, chutes, hoppers, rolled pipes, cone crusher components, and high-wear fixed plant surfaces. Used across mining, quarrying, power generation, and heavy construction.
| Overlay Type | High chrome carbide (CCO) |
|---|---|
| Hardness | Approximately 58–62 HRC |
| Backing Plate | Mild Steel |
| Configurations | Flat plate, rolled pipe, laser-scanned wear kits, custom MAO |
| Standard Sizes | 5' x 10' sheets, stocked in Canada, sold whole or cut to order. Total thicknesses 9, 12, 16, 20 and 25 mm. |
Where the failure mode is impact rather than sliding, a quench and tempered plate outlasts an overlay in that same zone. See HarderPlate® 400BHN and 500BHN.
Fixed plant runs a different duty cycle than mobile equipment and the material selection follows it. See mineral processing wear parts.
Our Current Stock
5' x 10' sheets stocked in Canada, sold whole or cut to order.
Ask us for current stock and lead time.
Service centers in Edmonton, Barrie, Salt Lake City, Arequipa and Belo Horizonte.
