Dragline Parts

Chain, Rigging & MAO Components

Raptor's dragline parts inventory covers cast and fabricated components for 100 to 110 cubic yard dragline buckets. Drag chain, hoist chain, dump chain and repair links, rope savers, trunnion links, rope sockets, pins, and bushings - if it is not on the shelf, Raptor can laser scan a sample part or run it through the MAO process from any CISC location.

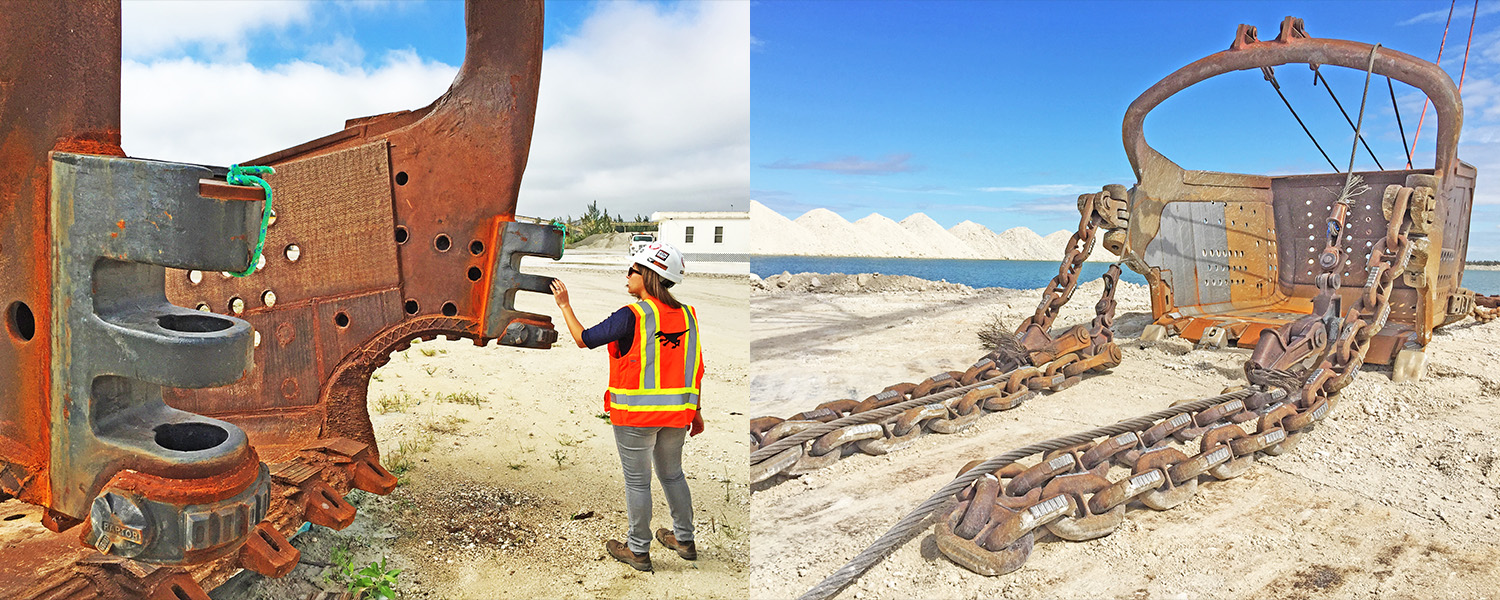

Worker in an orange vest inspecting a large rusted dragline fitting, beside a dragline bucket and drag chains on a sandy bank
Key Advantages

Broad inventory covering drag, hoist, and dump chain plus all major rigging components. Fabricated chain available for 100 to 110 Cu Yd buckets. Laser scanning for reverse engineering of hard-to-source or obsolete parts. MAO capability for anything not in stock. Available from CISC locations in Edmonton, Barrie, Salt Lake City, Arequipa, and Belo Horizonte.

Applications

Dragline buckets across all major OEM platforms. Drag chain, hoist chain, dump chain, repair links, rope savers, trunnion links, rope sockets, pins, and bushings.

Material Specifications
Chain Sizes Fabricated chain for 100–110 Cu Yd dragline buckets
Components Drag, hoist, dump chain, repair links, rope savers, trunnion links, rope sockets, pins, bushings
Source Options Stock, laser scan, or MAO
CISC Locations Edmonton, Barrie, Salt Lake City, Arequipa, Belo Horizonte
Raptor Fun Facts

If a part is obsolete or nobody stocks it any more, it can be laser scanned and made to order. See Made as Ordered capability.

Yukon Case Study

Five years, four applications, and one liner package.

Read More

Our Current Stock

Chain, links, rope savers and sockets for 100 to 110 cu yd dragline buckets.

Ask us for current stock and lead time.
Continuous Improvement Service Centers Available through Raptor service centers in Edmonton, Alberta and Barrie, Ontario in Canada, and Salt Lake City, Utah in the US.

Request a quote for Dragline Parts

Tell us the machine, the part or the wear problem. Have a part number you are replacing? You can add it on the next page.
